BUCKET TEETH THAT
HOLD THEIR EDGE.
Point teeth, adapters and pins for CAT, Hensley, ESCO, H&L, Bobcat, Komatsu and Deere buckets — cast to 477–534 BHN and Charpy-tested on every production lot. Type the part number you already know, or your machine, and get the complete set.
THREE PARTS. ONE BITE.
The shank (adapter) is welded or bolted to the cutting edge, the point tooth slides over the shank's nose, and a pin locks the two. The point is the part that wears — so it is pinned, not welded, and carries the hardest steel.

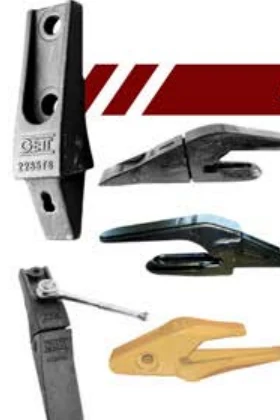

Weld-on or bolt-on shank sized to the cutting-edge lip — 3/4″, 7/8″, 1″, 1-1/4″ up to 3″.
The wear part. Replaced in minutes with a hammer and a pin — no welding on the job site.

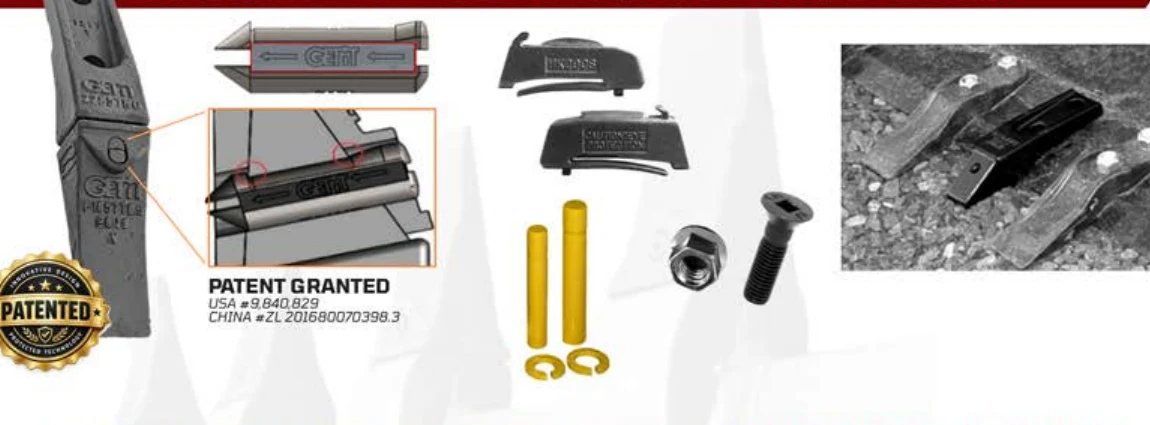

Flex pin, roll pin or pin + retainer, depending on the family. Ours is patented (US 9,840,829).
Point and shank in one casting that bolts straight to the edge — the mini-excavator and skid-steer favorite (CAT 301–304, 132-4720).
| Cutting edge | Side pin · H&L 23 | Vertical · X156 |
| 3/4″ | 1580SW | 1585TW |
| 7/8″ | 1575SW | 1588TWC |
| 1″ | 1581SW · U43792 | 1588TW |
| 1-1/4″ | 1697SW (24 series) | G109X220 |
THE NUMBERS MATTER.
Cheap teeth blunt and wear out fast. A point tooth at 477–534 BHN keeps its sharp profile through severe terrain; a weld-on shank at 36 ft·lbf stays weldable without nose washout or brittle weld cracks that drop teeth in the field.
In December 1997 SRJ became the first offshore-based supplier to meet the Charpy impact and Brinell hardness requirements of major American OEMs. We still inspect every production lot.
| Component | Metric | SRJ · GETT | Economy aftermarket |
|---|---|---|---|
| Point tooth superior wear resistance | Hardness | 477 – 534 BHN | 250 – 320 BHN |
| Impact energy | 14 ft·lbf | 10.3 ft·lbf | |
| Bolt-on shank greater structural rigidity | Hardness | 340 – 430 BHN | 220 – 260 BHN |
| Impact energy | 23 ft·lbf | 14.8 ft·lbf | |
| Weld-on shank ultimate nose protection | Hardness | 270 – 340 BHN | 200 – 240 BHN |
| Impact energy | 36 ft·lbf | 18.4 ft·lbf |
THE RIGHT SHAPE FOR THE GROUND.
Same pocket, same pin — a different nose for a different job. Every CAT J family and most Hensley sizes come in these profiles.
General digging — the default tooth on most buckets. Most wear metal for the money.
See sizes
Loaders and tight buckets where a long nose would hang up on the pile.
See sizes
Extra wear metal for high-hour excavators in abrasive sand and gravel.
See sizes
Shot rock and quarry faces — the thickest section we cast.
See sizes
Clean-up and grading in soft material — a smooth floor with fewer teeth.
See sizes
Single sharp point for frozen ground, clay and hardpan penetration.
See sizes
Two points, double the fracture — rock and caliche without a hammer.
See sizes
Narrow nose that self-sharpens as it wears — trenching and compacted fill.
See sizesFIVE PIN SYSTEMS. EVERY MAJOR OEM.
Teeth are interchangeable by pocket and pin, not by machine brand. Find your system and the GETT number is one click away.
H&L 23 · 24 · 25 · 27 series. Hensley 230HX, Deere T23, Bobcat 6737325 (BOB2S).
Hensley X156 to X550. Our dual-pin P1857TS fits both Hensley roll pin and Bobcat flex pin pockets.
J200 through J800 — 1U3202, 1U3252, 1U3302, 9W8452, 9W8552 and the ripper, loader and MTL lines.
V13/17 and V19/23 with our own pin concept; larger Super V sizes on request.
ESCO conical 18–40 and Helilok 21–57 with the ceramic-coated horseshoe pin.
EVERYTHING ELSE ON THE CUTTING EDGE.
Premium tungsten carbide, ultra-strength bonded, for the longest life in abrasive ground.
Weld-on, bolt-on, flush mount, wrap-around, bottom leg, center and corner — every lip size.
D4–D11 ripper tips, motor-grader scarifier tips and shanks, bolt-on side cutters for ESCO, CAT, Woods and ACS buckets.
Patent granted USA #9,840,829 · China #ZL 201680070398.3. Every result lists the pin and retainer it needs, so the box arrives complete.
NOT SURE WHICH TOOTH? SEND US A PHOTO OF THE SHANK.
2242 Palmer Dr., Schaumburg, IL 60173 · Stocked in Chicago, Atlanta, Dallas, Los Angeles.
