Bolt on PadChain Pitch
-
Bar Height
-
W1
-
W2
-
W3
-
T1
-
T2
-
T3
-
Grouser Width
-
Bolt Position
-
Bolt Position
-
Hole Diameter
-
Follow the four steps below to submit accurate bolt-on pad measurements for your machine.

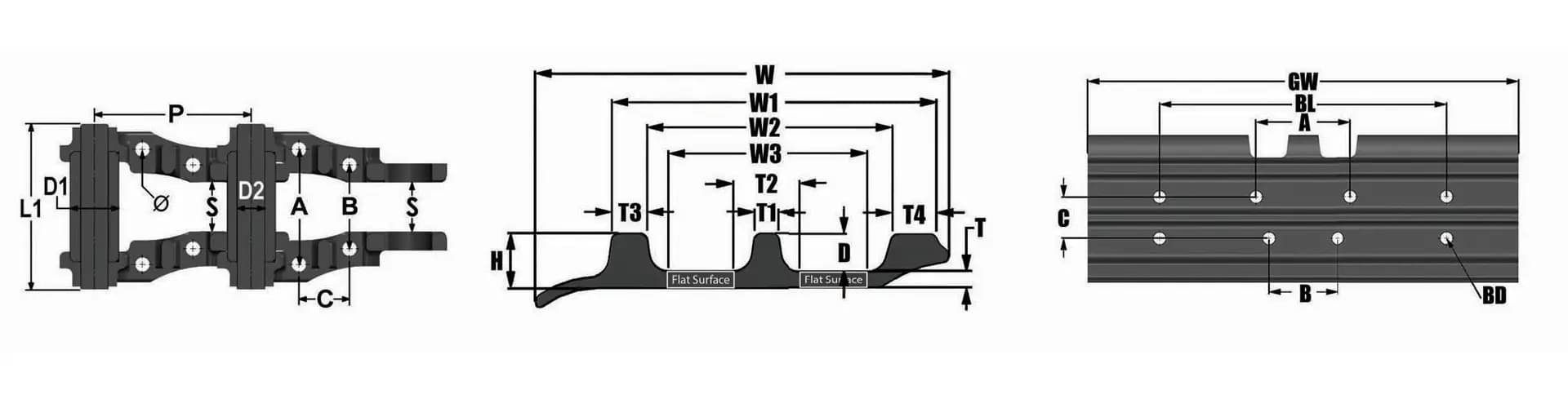

Have a caliper or tape measure ready. All values must be entered in millimetres (mm). Refer to the diagram above to identify each measurement point.
Each coloured dot corresponds to a specific dimension. Click any dot to open an input popover directly on the diagram, or click a field in the panel below.
Enter the value and press Enter to move on. The dot turns solid once a value is saved. The counter at the top tracks how many fields remain.
Once all 12 fields are filled the Submit button activates. Review the summary table, then submit — our team will match the correct bolt-on pad for your machine.
