ROAD MILLING TEETH
THAT KEEP CUTTING.
Circular teeth for cold planers, milling drums and trenchers — forged body, tungsten carbide tip brazed with HiTemp 505, retainer that locks in the block. Type the Kennametal, Coneqtec or Murphy's number you order today and get the GETT tooth, the washer and the block it runs in.
CT IS A CIRCULAR TOOTH. THE NEXT LETTER IS THE JOB.

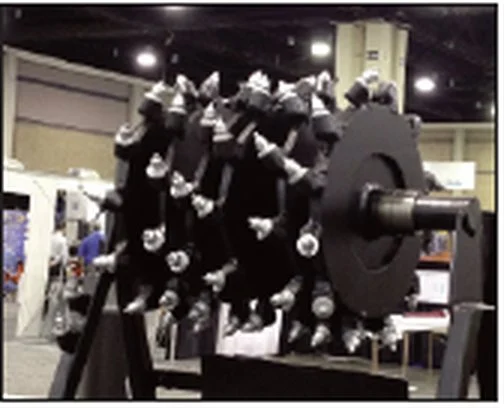

The tooth sits in a block on a rotating drum, so we call it a circular tooth. One letter tells you what it was made to cut; the number that follows is the shank, then the carbide tip.
BODY. CARBIDE TIP. RETAINER.

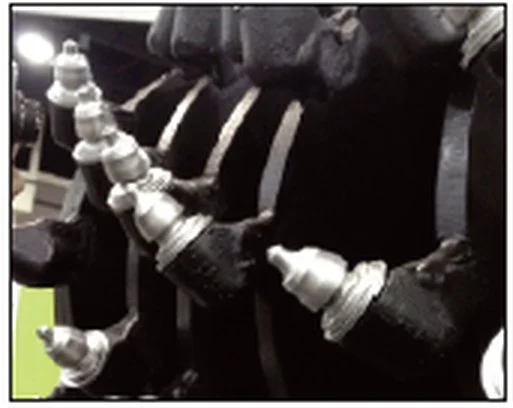

Three parts do the work. The forged steel body carries the load; the tungsten carbide tip is brazed to it with HiTemp 505 so it does not pop off when the drum hits rebar; the retainer sleeve snaps the body into the block and lets it rotate, so the tip wears evenly all the way round.
The washer rides between body and block and takes the abrasion the block would otherwise take — which is why most applications run one, and why we also make the no-washer (NG) body for blocks designed without it.
WIDER DRUM, BIGGER TIP. HARDER GROUND, NARROWER TIP.

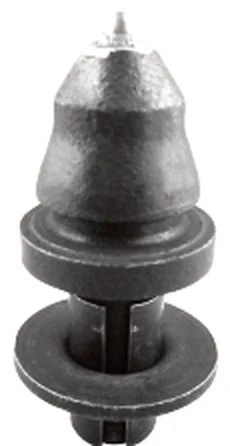

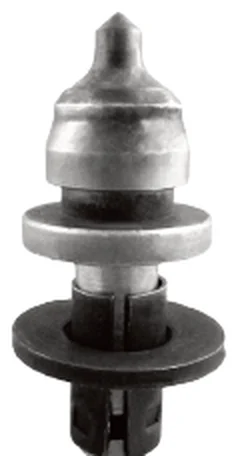

On asphalt the tip grows with the drum: 16×16 for a 300–600 mm planer, 18×19 at 2,000–2,200 mm, because a wider drum drives more teeth through more material per pass. On concrete and hard rock the tip gets narrower and taller (08×15, 12×20) so the carbide penetrates instead of skating.
SAME SHANK, SAME BLOCK, SAME DRUM.
A 20 mm GETT tooth goes into any 20 mm block with a 38 mm collar; a 22 mm tooth into a 27 mm or 38 mm collar block. The numbers below are the ones our tools replace line for line.

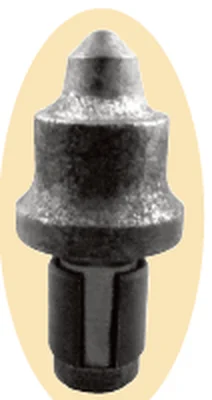

Small planer attachments for skid steers and loaders — the CTA-1RP-4 and the NG body.
Cold planers running 20 mm / 22 mm quick-change blocks. Send the block number and we confirm the tooth.
BY THE BOX, BY THE DRUM, OR BY THE PALLET.
A drum change is 100 to 200 teeth, so we quote a full set with washers and retainers in one line — tell us the machine or the drum width and we count it for you.
SEND US THE BLOCK NUMBER OR A PHOTO OF THE DRUM.
2242 Palmer Dr., Schaumburg, IL 60173 · Stocked in Chicago, Atlanta, Dallas, Los Angeles.
